Industrial Measurements

Your company manufactures products on a large scale and you want to minimize downtimes? Do you want to monitor your processes to guarantee the highest efficiency? Are you facing issues regarding component fatigue? Do you need measurements distributed across your entire production plant and you realized that your data recording is neither reliable nor gapless? In other words, you need a data acquisition system that exactly meets your needs? No matter how complex your requirements are, DEWETRON provides the right solution for each of your measurement challenges.


Your advantages with our systems

  • Direct sensor connection to the system
  • Customizable signal connectors
  • Expandable from 2 to 1000 channels
  • Widest variety of input styles and supported sensors

Synchronization of all inputs

  • Voltage
  • Current
  • Temperature
  • Bridge, DC, AC
  • RPM
  • Video
  • CAN
  • Digital In/Out

1. High-speed data logger for fast recording applications

DEWETRON high-speed recording covers sampling rates from 200 kS/s up to 10 MS/s.We distinguish between stream recording and transient recording. DEWETRON stream machines are able to record continuously (gap free) up to 1 GB/s to the internal SSD. Storage capacity up to several TB. DEWETRON transient recorders can support sampling rates up to 10 MS/s. Storage capacity up to 4 GS/channel.

  • Isolated conditioned input (strain, voltage, current) @ 5 MHz bandwidth
  • Scalable and expandable from 4 to 128 channels
  • Portable and stationary systems
  • Online data view during recording

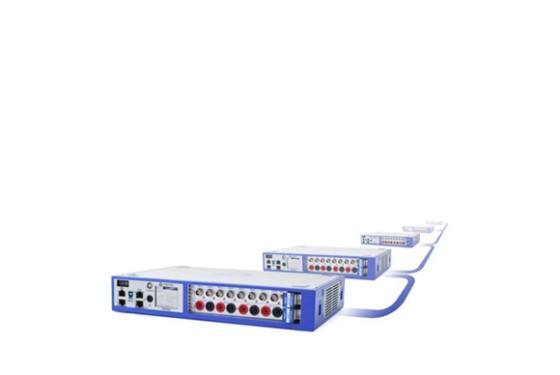

2. Distributed measurement systems for universal inputs

Simultaneous measurements at different locations

Very often measuring systems need to measure simultaneously at different locations. For example, power transformers of an electrical grid, multiple measuring points on long trains, or vehicles moving in different directions.
For those ambitious applications, we provide solutions that combine and synchronize already existing and new DEWETRON systems.

Our modular system architecture guarantees the right solution.

  • Synchronized recording
  • Almost unlimited distance
  • Acquisition rates from 10 S/s to 10 MS/s
  • GPS/IRIG clocked

3. Order Analysis for rotating machines

Very often errors and hidden faults on rotating machines are detected during the start-up and shut down.

DEWETRON order analysis is used to analyze these conditions by separating frequency components, which are related to engine speed from those related to structure.

  • Most DEWETRON order analysis systems are equipped with multiple measurement capabilities. For example recorder, scope, e-power, modal analysis
  • Select from more than 20 different systems


4. Torsional Vibration Analysis

Rotating machines and engines create noise, vibration and harshness, which often result in fatigue. As a result, vibration analysis is indispensable for industrial measurement. However, the measurement of both – torsional as well as rotational vibration – requires a high-resolution angle or time-based sampling of rotational speed. DEWETRON provides exactly the right measurement equipment:

  • Multiple analyses simultaneously
  • Differential counter inputs with programmable trigger levels up to 40 V (e.g. 60-2 CDM)
  • Digital filter at counter input to reduce noise (frequency converter)
