OXYGEN Measurement Software

The OXYGEN measurement software is the most intuitive and easy-to-use software in the data acquisition sector, designed to be operated via touchscreen or classic mouse and keyboard. Its nice instruments and controls make it fun to navigate through tons of data. 100 % Made in Austria by DEWETRON.
  • All-in-one software for measurement, visualization, and analysis for many applications
  • Compatible with almost every DEWETRON measurement system including 3rd party components from Vector, GeneSys, and OxTS
  • Easily expandable with additional license options or plugins
  • Open to the world – including remote control capability via TCP/IP

Data Acquisition

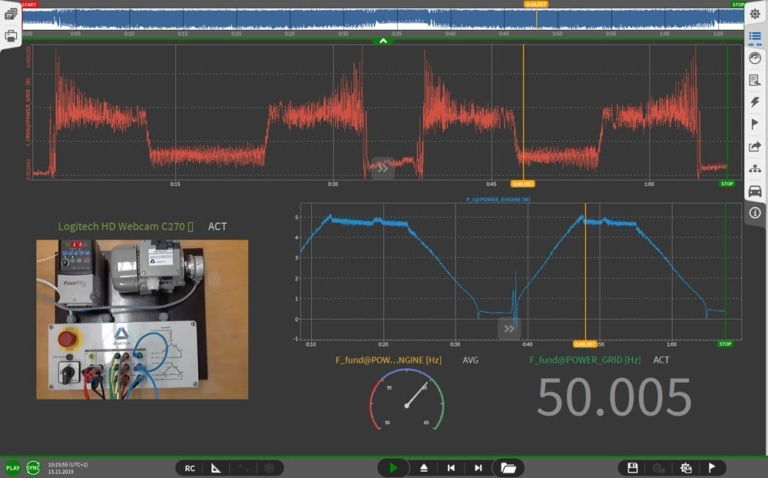

Data acquisition is one of the core features of OXYGEN. It is capable of continuous and synchronous acquisition of data from several sources: analog, digital, encoder, CAN, Ethernet, video, GPS and much more.
  • Analog data with up to 10 MS/s via TRION3™
  • Digital and encoder data with automatic rpm and angle calculation
  • CAN(-FD) decoding via dbc, including  J1939. Compatible with Vector VN-series (option)
  • Ethernet receiver for external sensors (option)
  • Video data from USB or GigE camera
  • Precision GPS position data via TRION™, GeneSys ADMA or OxTS RT series

Recording
The second core feature of OXYGEN is powerful data recording. All the acquired data can be stored in one data file with a simple touch on the record button. With the right hardware, you can achieve data rates up to 1 GB/s, you don’t have to bother to lose anything.
  • DejaView to review data during recording
  • File-split option for generating a new file after an amount of time or event occurrence
  • DMD-file format for efficient storage
  • Save data locally or remote on a shared drive
  • Open on any PC with the installed OXYGEN software (for FREE)

Visualization

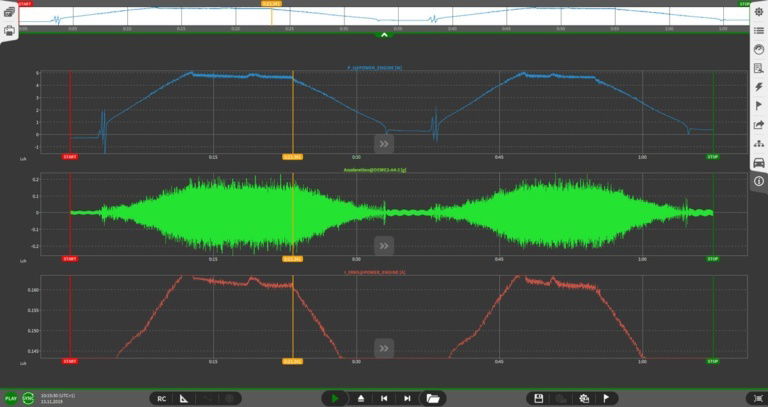

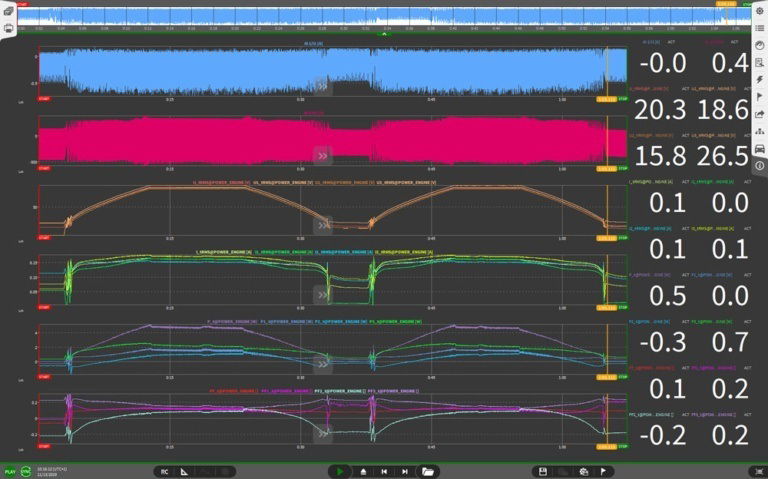

The right visualization gives the data its value. Attractively designed visualization instruments with intuitive and smooth operation.
  • 16 different visualization instruments for every purpose
  • Highly customizable screens, perfect for your application
  • Multi-monitor support for best overview

Order Analysis (Optional)

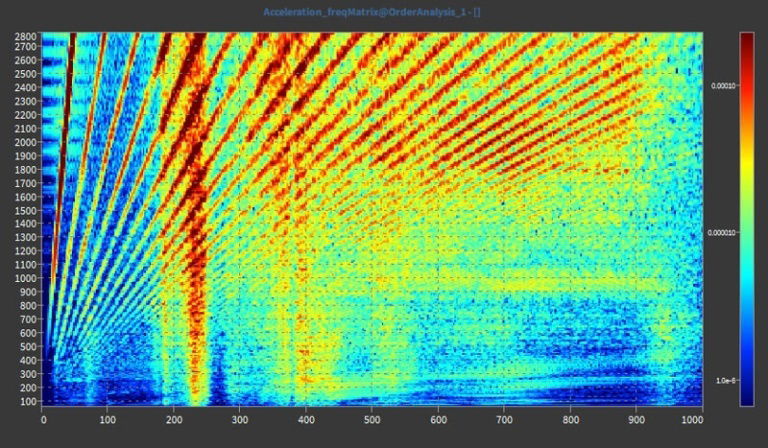

Analysis module for rotating machine’s noise and vibration. This feature turns your OXYGEN into a full order analysis instrument for calculation and visualization of frequency and order spectra vs. speed.
  • Simultaneous frequency and order domain analysis
  • Smart resampling algorithm for accurate and fast results
  • Selectable speed ranges from 60 rpm to 100.000 rpm
  • Order resolution from 0.01 to 1, with up to 90 % overlapping
  • Order extraction for selected orders for use in recorder or XY-instrument
  • Visualization of the result matrix in intensity diagrams

Power Analysis (Optional)

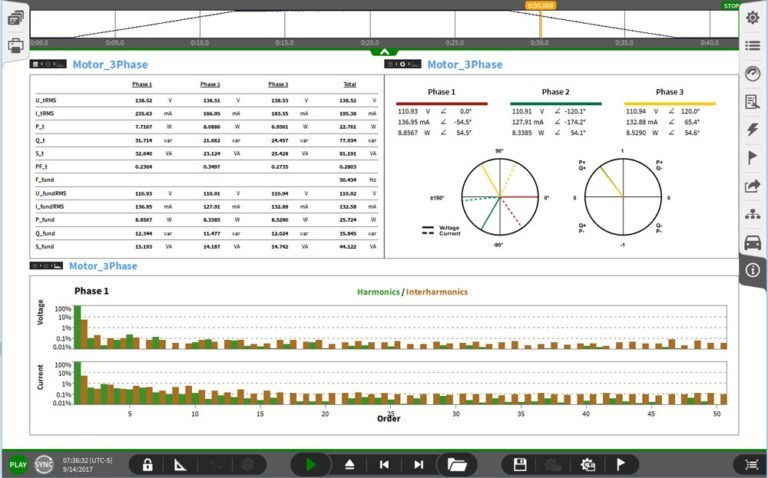

Turn your DEWETRON measurement device into a fully-featured Power Analyzer. This feature is the core feature of our PA-series devices, but also available for any other device. Its flexibility and feature scope are outstanding on the market:
  • Analysis of 1-9 phase power systems (1P2W, 2V2A, 3P3W, 3P4W, 6P6W, …)
  • Several power systems are logically summarized into Power Groups
  • Gapless cycle-by-cycle calculation, no blind spots
  • Unique fundamental frequency detection with delay compensation for highest accuracy and reliability of the results
  • BASIC features: voltage, current RMS, AVG, fundamental and symmetrical components, active/reactive/apparent power total and fundamental as well as energy
  • ADVANCED features: harmonics (IEC 61000-4-7), flicker (IEC 61000-4-15), flicker emission (IEC 61400-21) and mechanical power/efficiency
  • EXPERT features: rolling calculation meets FGW-TG3 (TR3) requirements

Synchronization

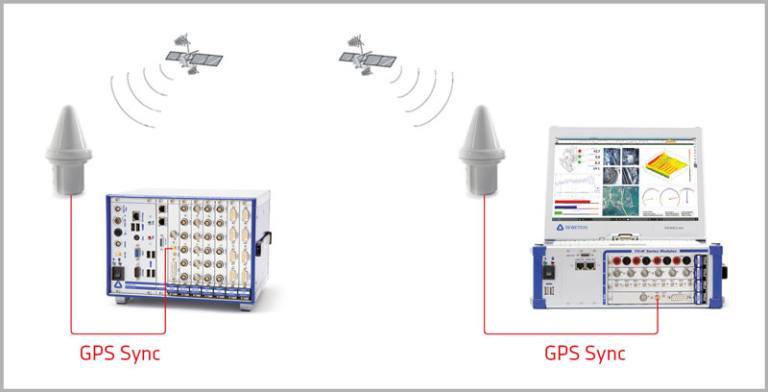

Use our TRION-BASE, TRION-TIMING or TRION-VGPS module to acquire data synchronously to other measurement devices. Relative time and absolute time synchronization are supported.
  • Absolute time synchronization via PTP (IEEE 1588), GPS and IRIG
  • Relative time synchronization via PPS and TRION-SYNC-BUS
  • Optional synchronization of operating system time

Trigger & Events

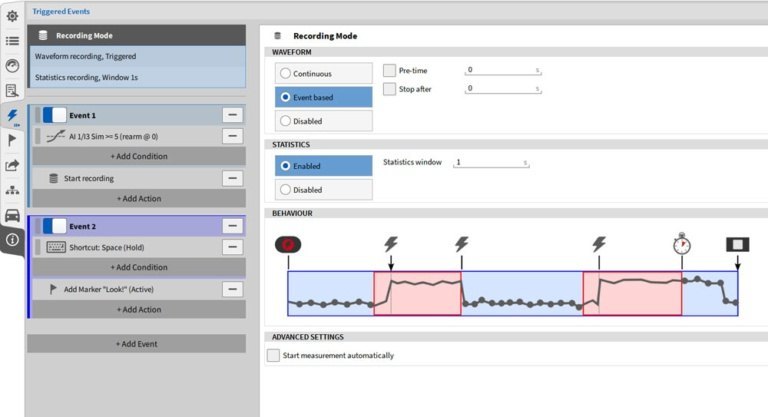

The powerful trigger and event system makes it easy to record data in case of events, create marker, set a digital output or make a snapshot of the actual measured data. The user can create different events, each consisting of one or more trigger conditions and one or more actions.
  • Many different trigger conditions: signal level (positive/negative edge, window) with optional rearm level, keyboard or time
  • Powerful actions like start/stop of recording, set an alarm with optional digital output, set a marker with pre-defined text or make a snapshot of the actual measured data.

Analysis and Postprocessing

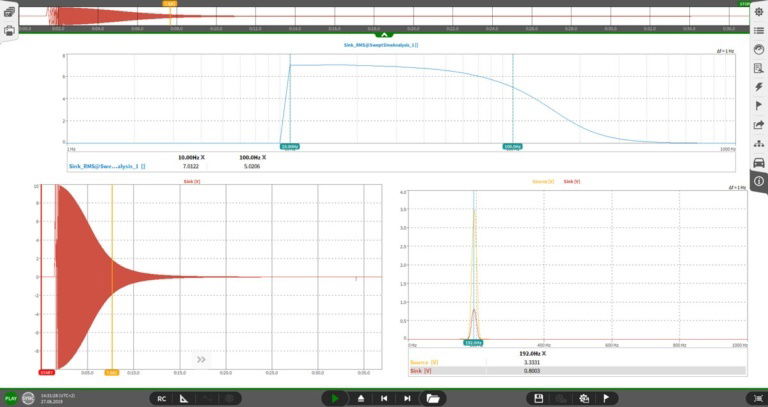

The real work often begins after the live measurement. To complete this workflow, OXYGEN also supports post-processing and analysis of the recorded data.
  • Use many of the math and calculation (also incl. FFT) features to refine your measurement results
  • Create new visualizations and measurement screens
  • Quick navigation through the data with well-known gestures and intuitive zoom and scrolling mechanisms
  • Create reporting pages (see below)
  • Export data to complete your workflow
  • And the best: you can do that also on your PC, license-free!

Reporting

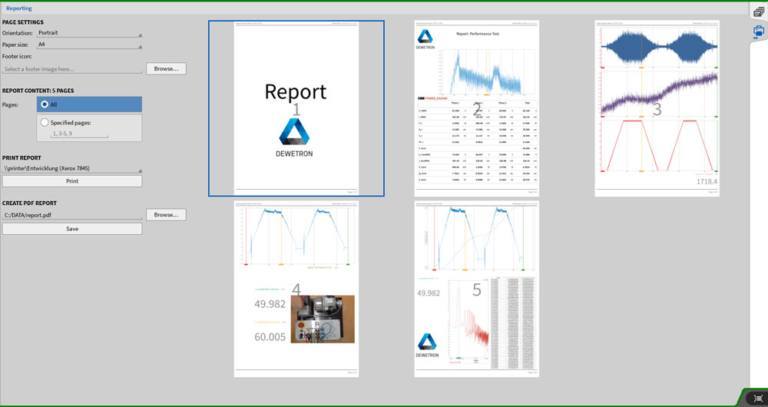

Use OXYGEN for your whole measurement workflow. From acquiring data to post-processing and finally reporting the data. OXYGEN supports you with the creation of simple reports, which you can create very fast:
  • Separate reporting pages (additional to the measurement screens) with typical printing layout (A4, letter, portrait, and landscape)
  • Just duplicate a measurement screen or create new pages with a simple click
  • Use all instruments and visualizations also in the reporting pages
  • Separate time-cursor on each page available to report different time snippets in one report
  • Directly print or save to pdf
