Mainframe Systems


Mainframe Systems

Mainframes are very popular for test benches and environments that are poorly accessible or hazardous to people. To that end, the compact and flexible DAQ hardware mainframes are used with external displays.

Mainframeswith TRION™/TRION3™ Modules


  • Highest channel density
  • User exchangeable TRIONTM/TRION3TM modules
  • for analog, digital, counter, CAN inputs
  • Selectable resolution up to 24-bit

CONNECTIVITY

  • SYNC-CLOCK™ synchronizes all signal sources:
  • TRION™/TRION3™ modules
  • Video cameras
  • FlexRay interface
  • GPS

Expandable with

  • DEWE2 Front-end systems (for more TRION™ slots)
  • CPAD/EPAD (for static inputs)

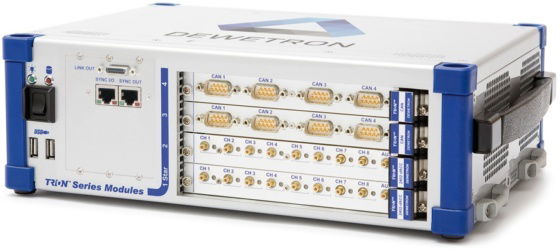

Portable high-speed DEWE3-M4 measurement system


The new DEWE3-M4 measurement system is the high-speed version of the proven DEWE2-M4. With its high flexibility and ruggedness and the internal buffer battery that bridges power outages for up to 10 minutes, the DEWE3-M4 is predestined for in-vehicle testing.

To achieve the high performance of up to 5 MS/s simultaneous sampling rate, use the new TRION3™  series modules. But the DEWE3 series instruments are downwards compatible and can also be equipped with the common TRION™ modules.

Key Facts

  • 4 slots for TRION™/TRION3™ modules
  • Isolated DC power supply
  • Optional internal UPS buffer battery
  • Stackable battery pack available
  • Rugged Solid State Disk, 90 MB/s


DEWE2-M4 system - Flexible, rugged and portable


With its high flexibility and ruggedness, the DEWE2-M4 is predestined for in-vehicle testing. The DEWE2-M4 features an internal buffer battery that bridges such power outages for up to 10 minutes


Key Facts

  • 4 slots for TRION™ modules
  • Isolated DC power supply
  • Optional internal UPS buffer battery
  • Stackable battery pack available
  • Rugged Solid State Disk, 90 MB/s


DEWE2-M7 - Rack-mount data acquisition system


Key Facts

  • 7 slots for TRION™ modules
  • AC  power supply
  • SSD for OS and software
  • All connections are at the front

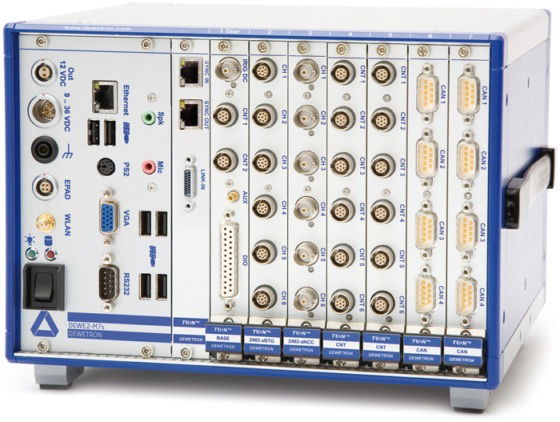

DEWE2-M7s  - Rack-mount data acquisition mainframe


Key Facts

  • 7 slots for TRION™ modules
  • Isolated DC power supply
  • Optional internal UPS buffer battery
  • Solid State Disk, 90 MB/s
  • All connections at the front

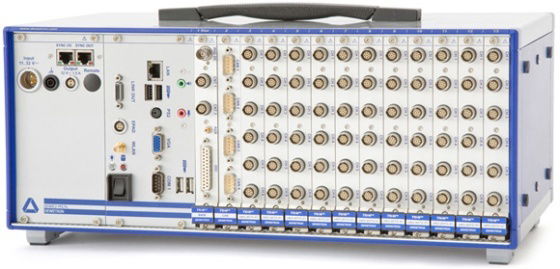

DEWE2-M13s - High channel count Measurement system


Key Facts

  • 13 slots for TRION™ modules
  • Isolated DC power supply
  • Optional internal UPS buffer battery
  • Solid State Disk, 90 MB/s

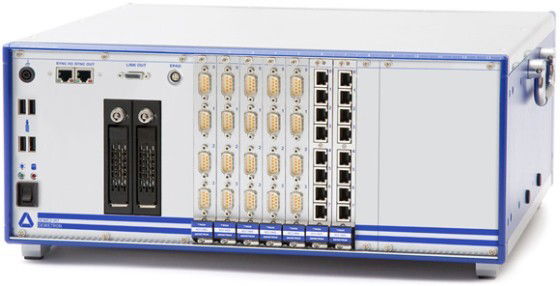

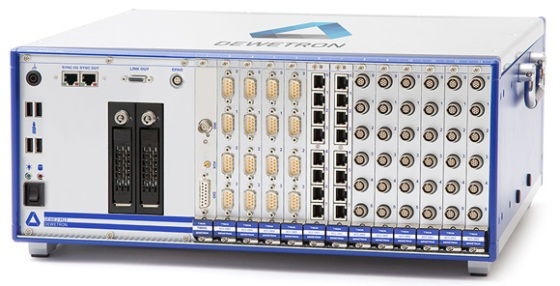

DEWE2-M13 - Test Bench Measurement System


Key Facts

  • 13 slots for TRION™ modules
  • AC power supply
  • 80 MB/s stream-to-disk rate
  • 1 HDD, 2 bays for removable disks
  • All connections at the front

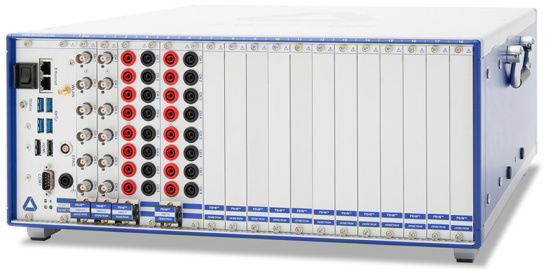

DEWE2-M18 - Rack-mount Measurement system


Key Facts

  • 18 slots for TRION™ modules
  • AC power supply
  • 90 MB/s stream-to-disk rate
  • Solid State Disk
  • All connections at the front

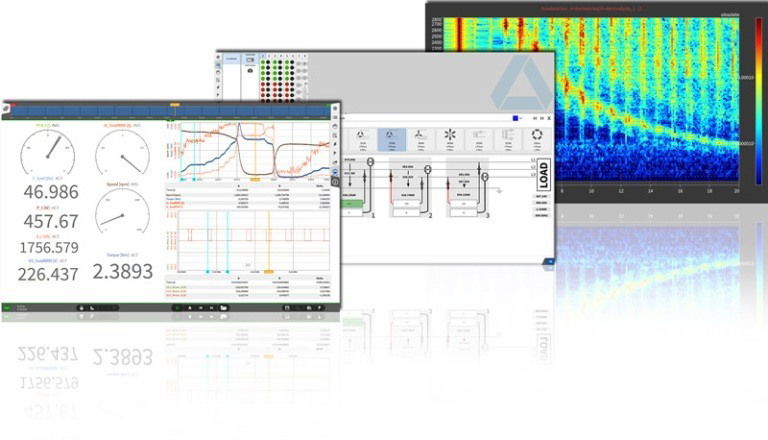

OXYGEN
Measurement Software



The OXYGEN measurement software is the most intuitive and easy-to-use software in the data acquisition sector, designed to be operated via touchscreen or classic mouse and keyboard. Its nice instruments and controls make it fun to navigate through tons of data. 100 % Made in Austria by DEWETRON.

  • All-in-one software for measurement, visualization, and analysis for many applications
  • Compatible with almost every DEWETRON measurement system including 3rd party components from Vector, GeneSys, and OxTS
  • Easily expandable with additional license options or plugins
  • Open to the world – including remote control capability via TCP/IP
